Match an 8P8C Ethernet plug to conductor type, gauge, jacket diameter, category, pass-through tooling, shield construction, and the job's inspection standard.
Prepared by the Signalwise Picks editorial deskUpdated August 11, 2026
Quick answer
The practical answer
Read the cable jacket and the plug datasheet together. Match solid or stranded conductors, AWG range, insulation diameter, jacket size, shield type, and required crimper. Pass-through plugs make wire order easier to inspect but need a compatible cutting crimper and flush conductor ends. For permanent in-wall cable, a jack and short factory patch lead is often the more serviceable endpoint.
Common buying question
Which RJ45 modular plugs fit my Cat6 solid or stranded cable, and should I use pass-through connectors?
The existing keystone, patch-panel, cable-tester, and crimp-tool pages cover other parts of the channel. None decides whether a specific modular plug's contacts and cable opening fit this conductor and jacket.

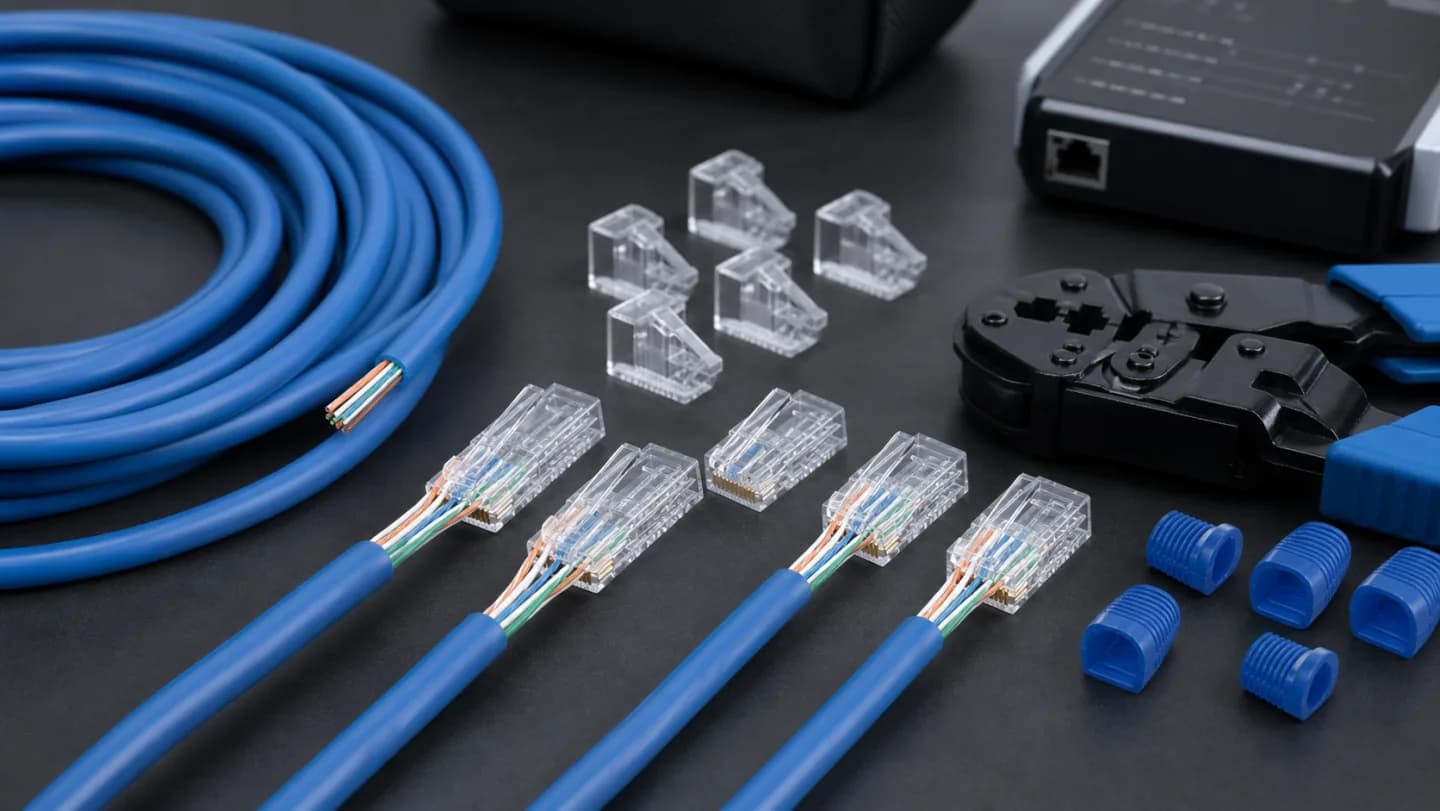

Original editorial image for category, fit, and use context; verify the exact linked product appearance and configuration on the retailer page.
Start with the cable, not the connector listing
Two boxes marked Cat6 can use different conductor gauges, insulation diameters, separators, jacket thicknesses, and solid or stranded wire. Record those values first. A connector that accepts 23 AWG solid cable may be a poor match for a thin stranded patch cord, while a compact plug may not close around a stiff outdoor jacket.
Choose the termination style for the job
Pass-through plugs expose conductor order before crimping and can reduce trimming errors when the tool cuts cleanly. Closed-end plugs avoid exposed cut faces but demand consistent trim length. Load bars help organize large conductors. For horizontal cable ending at a wall or rack, a keystone jack often offers better serviceability than a male plug.
Keep the pairs intact and the jacket captured
Follow one T568A or T568B scheme at both ends, maintain twist close to the contacts, seat every conductor fully, and verify that the strain tab clamps the jacket rather than the individual wires. Excess untwist raises crosstalk; uncaptured jackets transfer every tug to tiny conductor contacts.
Inspect the crimper as part of the system
A pass-through connector needs a die that seats contacts and trims all conductors flush without leaving whiskers near the mating face. Confirm plug orientation in the tool, keep the blade clean, and reject cracked bodies or uneven contacts. Buying a large pack does not reduce the need to sacrifice several pieces for setup and inspection.
Test beyond a successful link light
Run a wiremap that can identify opens, shorts, reversals, and split pairs. Then verify the intended negotiated rate under movement and, for PoE, the real powered load. Formal performance requirements call for the appropriate qualifier or certifier. Label handmade cords so future troubleshooting does not confuse them with factory-tested leads.
Current Amazon option
Check this exact product
100-Pack RJ45 Cat6 Pass Through Connector RJ45 Modular Plugs for Solid or Stranded UTP Cable | for Solid or Stranded UTP Cable
ASIN
B0CLV7VJ5Y
Brand
ZOERAX
Listing checked
8/11/2026
Compare the current title, ASIN, variant, seller, stock, shipping, price, and return path before ordering.
Exact US checkout identity for this draft. Recheck the selected variation, seller, included parts, live availability, and any recall notice on release day.
Public owner context
Questions to answer before buying
Community discussions help surface installation, fit, maintenance, and failure questions. They are anecdotal context, not product specifications or a substitute for current instructions.
Used to locate real owner questions and failure reports that shape the inspection checklist. Anecdotes are not presented as measured product tests or copied as endorsements.
How this page was governed
Page-specific editorial method
1.Photograph the cable jacket and measure conductor insulation and outer-jacket diameter before shopping.
2.Use the connector maker's cable-fit table and the exact compatible crimper rather than mixing systems by appearance.
3.Make sample terminations, inspect all eight conductors and strain relief, then flex-test the cable gently.
4.Wiremap every lead and use qualification or certification when the link must meet documented category performance.
